Start Products Air source heat pumps LWAV series

LWAV series

The air/water heat pumps of the LWAV series from alpha innotec are characterized above all by their compact outdoor installation, active cooling, silent mode for the night and quick and easy commissioning.

Benefits

Everything convenient and energy-saving in one device

In addition to heating and preparing domestic hot water, the LWAV can also provide cost-effective cooling. In this way, the heat pump ensures individual comfortable temperatures in your home all year round. What's more, the units impress with their energy-saving operation. Modern inverter technology ensures that no excess energy is produced.

Low space requirement and simple commissioning

The LWAV can be flexibly placed inside your house so that you have as much space as possible for other things in the basement. The ready-to-plug-in connection concept of the outdoor unit makes it quick and easy to install and commission.

Wide range of possible combinations

Control your heat pump conveniently from anywhere and make settings - easy with the LWAV+. The individual comfort temperature in the home can be set and controlled via an app at any time, whether on the road or from the comfort of your own sofa.

  • Product group AIR/WATER
  • Heating capacity 1 3,82 (A2/W35 part. load) kW
  • Heating capacity 2 2,81 (A7/W35 part. load) kW
  • COP 1 4,19 (A2/W35 part. load)
  • COP 2 5,03 (A7/W35 part. load)
  • Max. flow temperature 60 °C
  • Indoor / Outdoor installation Outdoor installation
  • Cooling Yes
  • Refrigerant R410A
  • Energy efficiency class space heating 35°C (combi heater) A+++
  • Energy efficiency class space heating 55°C (combi heater) A++
  • Energy efficiency class space heating 55°C (combined system) A++
  • Height 1480 mm
  • Width 995 mm
  • Depth 840 mm
  • Weight 132 kg
  • Product group AIR/WATER
  • Heating capacity 1 5,00 (A2/W35 part. load) kW
  • Heating capacity 2 5,29 (A7/W35 part. load) kW
  • COP 1 4,01 (A2/W35 part. load)
  • COP 2 4,71 (A7/W35 part. load)
  • Max. flow temperature 60 °C
  • Indoor / Outdoor installation Outdoor installation
  • Cooling Yes
  • Refrigerant R410A
  • Energy efficiency class space heating 35°C (combi heater) A++
  • Energy efficiency class space heating 55°C (combi heater) A++
  • Energy efficiency class space heating 55°C (combined system) A++
  • Height 1480 mm
  • Width 995 mm
  • Depth 840 mm
  • Weight 148 kg
  • Product group AIR/WATER
  • Heating capacity 1 3,82 (A2/W35 part. load) kW
  • Heating capacity 2 2,81 (A7/W35 part. load) kW
  • COP 1 4,19 (A2/W35 part. load)
  • COP 2 5,03 (A7/W35 part. load)
  • Max. flow temperature 60 °C
  • Indoor / Outdoor installation Outdoor installation
  • Cooling Yes
  • Refrigerant R410A
  • Energy efficiency class space heating 35°C (combi heater) A+++
  • Energy efficiency class space heating 55°C (combi heater) A++
  • Energy efficiency class space heating 55°C (combined system) A++
  • Height 1480 mm
  • Width 1660 mm
  • Depth 920 mm
  • Weight 150 kg
  • Product group AIR/WATER
  • Heating capacity 1 5,00 (A2/W35 part. load) kW
  • Heating capacity 2 5,29 (A7/W35 part. load) kW
  • COP 1 4,01 (A2/W35 part. load)
  • COP 2 4,71 (A7/W35 part. load)
  • Max. flow temperature 60 °C
  • Indoor / Outdoor installation Outdoor installation
  • Cooling Yes
  • Refrigerant R410A
  • Energy efficiency class space heating 35°C (combi heater) A++
  • Energy efficiency class space heating 55°C (combi heater) A++
  • Energy efficiency class space heating 55°C (combined system) A++
  • Height 1480 mm
  • Width 1660 mm
  • Depth 920 mm
  • Weight 163 kg

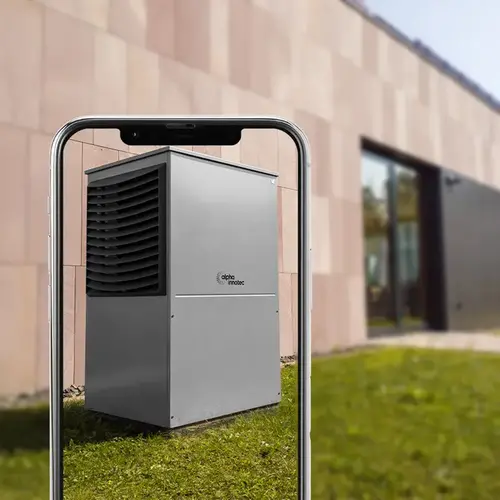

EXPERIENCE THE LWAV IN 3D!

Are you curious to see what the LWAV heat pump looks like in front of your house? Then just test it out.

Follow the link and click on AR to virtually place the heat pump in front of your house using your smartphone:

3D VIEW - LWAV

3D View - LWAV+
