LWCV series
The air/water heat pumps of the LWCV series for indoor installation are the perfect solution for almost any property. With its small floor space, the heat pump creates additional space in the basement - yet the operator does not have to compromise on performance and comfort.
Benefits
All in one compact device
Whether in a new building or in the course of a refurbishment: The LWCV convinces with its compactness and already offers numerous integrated components - which additionally guarantees planning reliability for the operator.
Attractive design
The air/water heat pumps score with a modern, timeless and attractive design and thus fit well into the overall picture in the basement. In addition, the devices score points for their particularly low noise emission values.
Innovative heating through inverter technology
The inverter technology inside the LWCV ensures a particularly broad performance range, making it suitable for different types of buildings. The heat pump adjusts its heating output according to demand, which can help reduce energy consumption.
- Product group Air/Water | Inverter-Heatpump
- Heating capacity 1 3,82 (A2/W35 part. load) kW
- Heating capacity 2 2,81 (A7/W35 part. load) kW
- COP 1 4,19 (A2/W35 part. load)
- COP 2 5,03 (A7/W35 part. load)
- Max. flow temperature 60 °C
- Indoor / Outdoor installation Indoor installation
- Cooling Yes
- Refrigerant R410A
- Energy efficiency class space heating 35°C (combi heater) A+++
- Energy efficiency class space heating 55°C (combi heater) A++
- Energy efficiency class space heating 55°C (combined system) A++
- Height 1880 mm
- Width 845 mm
- Depth 790 mm
- Weight 208 kg
- Product group Air/Water | Inverter-Heatpump
- Heating capacity 1 5,00 (A2/W35 part. load) kW
- Heating capacity 2 5,29 (A7/W35 part. load) kW
- COP 1 4,01 (A2/W35 part. load)
- COP 2 4,71 (A7/W35 part. load)
- Max. flow temperature 60 °C
- Indoor / Outdoor installation Indoor installation
- Cooling Yes
- Refrigerant R410A
- Energy efficiency class space heating 35°C (combi heater) A++
- Energy efficiency class space heating 55°C (combi heater) A++
- Energy efficiency class space heating 55°C (combined system) A++
- Height 1880 mm
- Width 845 mm
- Depth 790 mm
- Weight 227 kg

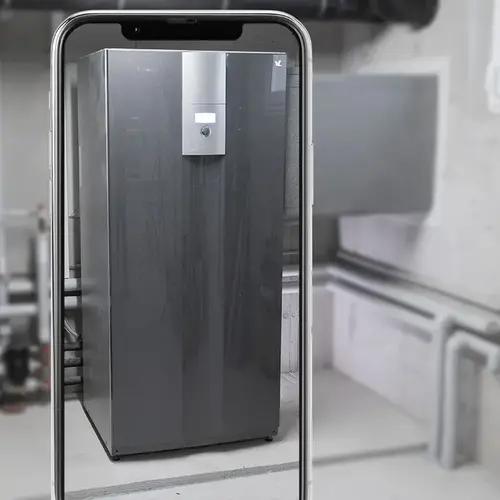

EXPERIENCE THE LWCV IN 3D!
Are you curious to see what the LWCV heat pump looks like in your home? Then just test it out.
Follow the link and click on AR to virtually place the heat pump inside your home using your smartphone.
