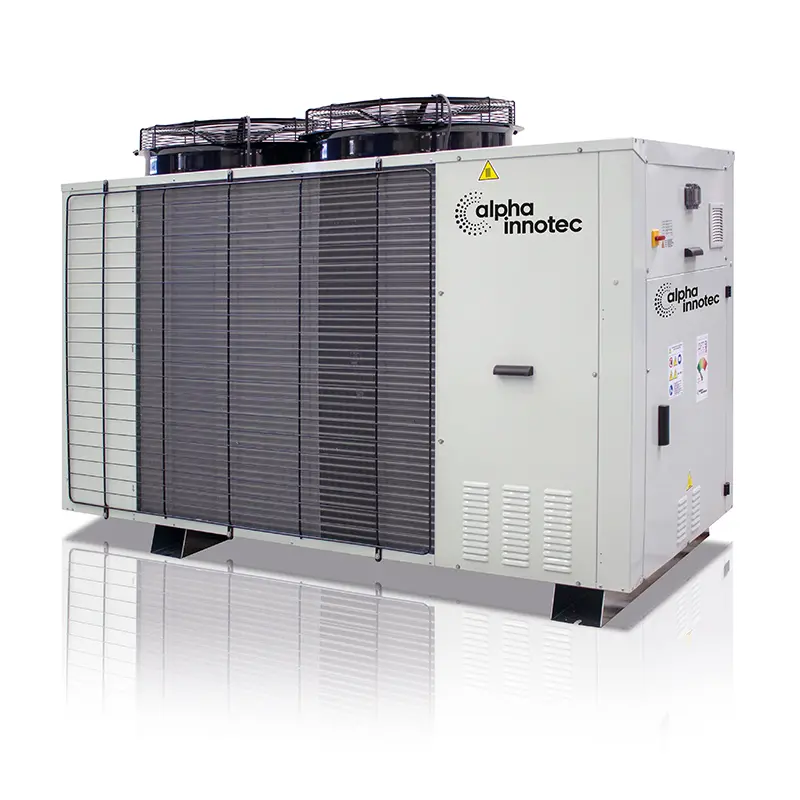

Sera series
Especially for applications in the medium output range for heating and cooling in residential, office and production buildings (30-70 kW) in conjunction with other heat generators.
Benefits
LOW GWP REFRIGERANT
The Sera series uses R32 refrigerant with a comparatively low GWP. The applicable requirements of the F-Gas Regulation must be taken into account during planning and operation.
DEMAND-BASED PERFORMANCE ADJUSTMENT
Thanks to the speed-controlled compressor (inverter), the output of the unit adapts to the current heating or cooling demand. Cascading of up to four units is possible.
EASY INTEGRATION INTO BUILDING MANAGEMENT SYSTEMS
By means of an optional Mod-Bus or BacNet interface, the unit can be conveniently integrated into building management systems.
- Item number 400100000
- Product group AIR/WATER
- Heating capacity 1 32,3 (A7/W45) kW
- COP 1 3,35 (A7/W45)
- Max. flow temperature 60 °C
- Indoor / Outdoor installation Outdoor installation
- Cooling 29,6 kW (A35/W7)
- Refrigerant R32
- Energy efficiency class space heating 35°C (combi heater) A++
- Item number 400101000
- Product group AIR/WATER
- Heating capacity 1 41,9 (A7/W45) kW
- COP 1 3,33 (A7/W45)
- Max. flow temperature 60 °C
- Indoor / Outdoor installation Outdoor installation
- Cooling 38,4 kW (A35/W7)
- Refrigerant R32
- Energy efficiency class space heating 35°C (combi heater) A++
- Item number 400102000
- Product group AIR/WATER
- Heating capacity 1 53 (A7/W45) kW
- COP 1 3,35 (A7/W45)
- Max. flow temperature 60 °C
- Indoor / Outdoor installation Outdoor installation
- Cooling 47,2 kW (A35/W7)
- Refrigerant R32
- Energy efficiency class space heating 35°C (combi heater) A++
- Item number 400103000
- Product group AIR/WATER
- Heating capacity 1 58,6 (A7/W45) kW
- COP 1 3,21 (A7/W45)
- Max. flow temperature 60 °C
- Indoor / Outdoor installation Outdoor installation
- Cooling 54,1 kW (A35/W7)
- Refrigerant R32
- Energy efficiency class space heating 35°C (combi heater) A++
